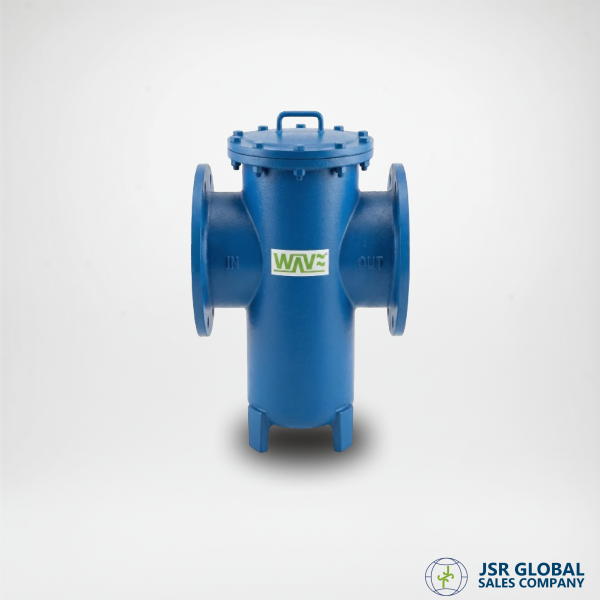

MS BUCKET STRAINER

In stock•cod not available

MS BUCKET STRAINER

Model No. : JBS-MS-150-*D* Product : MS Bucket Type Strainer Description : Strainer Complete with Stainless Steel Bucket Body : IS 2062 GR. B Filter Element : Stainless Steel AISI-304 Perforation : 1.2 – 05 mm End Connection : Flange End, Drilled as per Class 150#RF Cover : Bolted Cover Drain : Drain Plug (Available) Lifting Handle : MS Lift Handle (Provided) Support Legs : MS Supporting Legs (Provided) Filtration Area : 1:4 of Connection Size Body Test Pressure : 2.4 MPa (348Psig.) Hyd. Working Pressure : 1.6 MPa (232 Psig.) Max. Available Size : 40NB to 1200NB

AIR VESSEL TANK

Air Vessel Tank

Model No. : JAV-MS-150-*D* Shell Thickness : 6/8/10 mm Dish end Thickness : 10/12 mm Vent Connection : 25mm (on top) Drain Connection : 25mm (on bottom) Socket Connection : 10/15 mm (right in the top for pressure measurement) Process Connection : 50/80/100 mm (Flanged end as per Table E) Body Test Pressure : 2.4 MPa (348Psig.) Hyd. Working Pressure : 1.6 MPa (232 Psig.) Max. Available Size : 200-650 mm Dia with 1000-2400 mm Height Accessories : Excluded

Y-STRAINER

CI Y-STRAINER

Model No. : JYS-CI-150-*D* Product : CI Y Type Strainer Description : Strainer Complete with Stainless Steel Bucket Body : IS 210 GR. 220 Filter Element : SS-304 Perforation : 01-03mm End Connection : Flange End (Drilled) Flange : Table D, E, F & Class 150#RF Cover : CI Bolted Cover Drain : Drain Plug (Available) Filtration Area : 1:4 of Connection Size

Colour	Blue
Body	Mild Steel IS-2062 GR. B
Bonnet	Mild Steel IS-2062 GR. B
Connection	Flange End as per Class 150#RF
Filter	1.2mm - 05mm perforation
Filter Area	1:4 of Pipe Cross Sectional Area
